Features¶

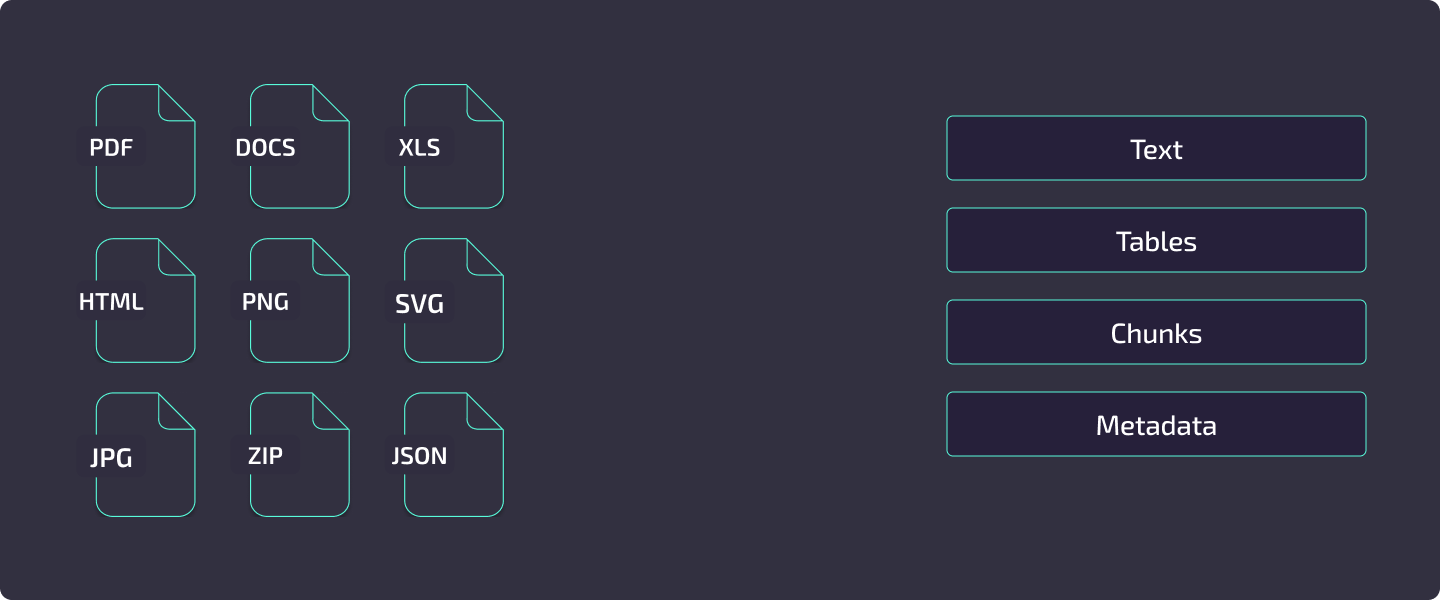

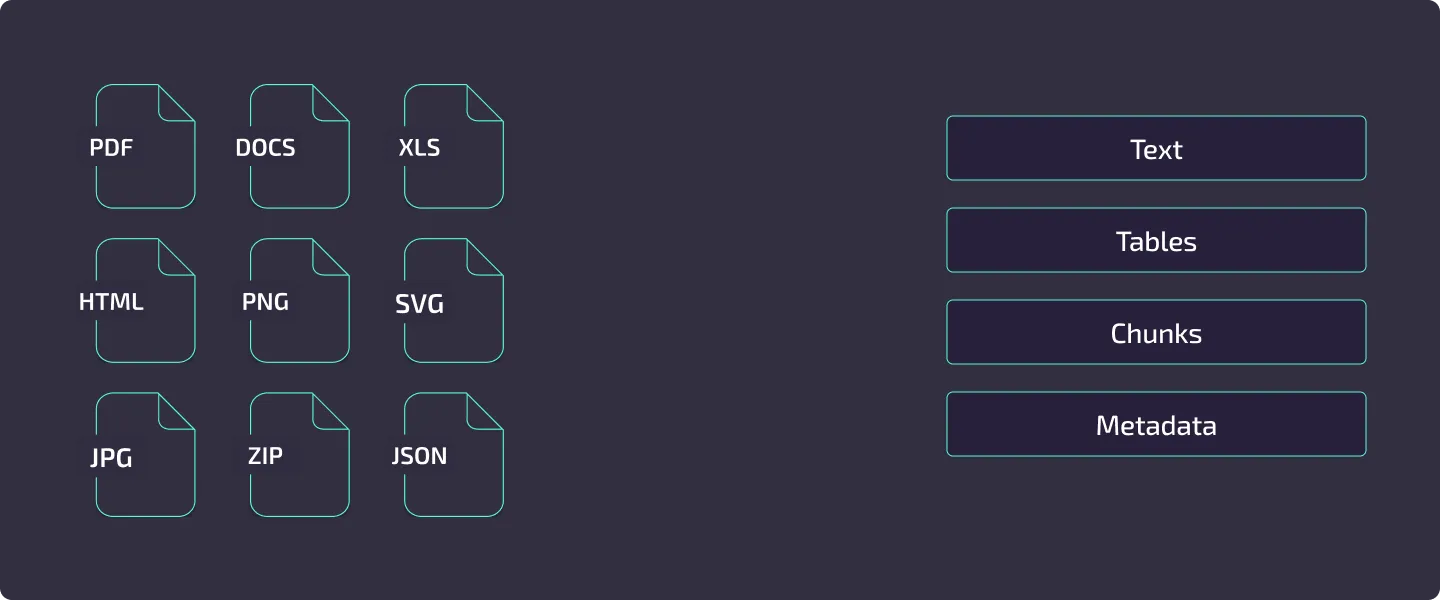

A map of what Kreuzberg can do. Each section links to the guide or reference page with configuration details and code examples.

Format Support¶

96 file formats handled by native Rust extractors — no LibreOffice or other external tools required.

For the full format matrix with MIME types, extraction methods, and special capabilities, see the Format Support Reference.

Feature Availability¶

Use these labels when matching docs to deployed packages. Labels use major.minor only.

Extraction Pipeline¶

Every file flows through the same multi-stage pipeline:

flowchart LR
    A[Input File] --> B[MIME Detection]
    B --> C[Format Extractor]
    C --> D{OCR Needed?}
    D -->|Yes| E[OCR Engine]
    D -->|No| F[Post-Processing]
    E --> F
    F --> G[ExtractionResult]

1. MIME detection -- Kreuzberg identifies the file type from magic bytes and extension, then selects the matching native extractor from the registry.
2. Format extraction -- The extractor pulls text, tables, metadata, and optionally images from the file. PDF extraction uses pdf_oxide (pure Rust); Office formats use native XML or OLE/CFB parsers; images pass directly to OCR.
3. OCR -- When the extractor finds no text layer (or force_ocr is set), the file is routed to the configured OCR backend. The OCR result replaces or supplements the extracted text.
4. Post-processing -- Validators, quality processing, chunking, embeddings, keyword extraction, and any registered post-processor plugins run in sequence.
5. Caching -- If caching is enabled, results are stored keyed by a content hash so repeated extractions skip the entire pipeline.

For a deep dive into each stage, see Extraction Pipeline.

Output Formats¶

Kreuzberg supports five output formats: Plain text, Markdown, Djot, HTML, and Structured (JSON). The HTML format includes a styled renderer with semantic kb-* CSS classes, five built-in themes, and CSS custom properties for full customization. See HTML Output for details.

OCR Engines¶

Three OCR backends, usable individually or chained into a quality-driven fallback pipeline.

Backend Comparison¶

Multi-Backend Pipeline¶

When the paddle-ocr feature is enabled, Kreuzberg automatically constructs a fallback pipeline: Tesseract runs first, and if the output falls below configurable quality thresholds (16 tunable parameters), PaddleOCR takes over. You can also define a custom ordering across all three backends.

The pipeline supports auto-rotate for page orientation detection (0/90/180/270 degrees) and per-stage language and backend-specific settings.

flowchart TD
    A[Image / Scanned Page] --> B[Primary Backend]
    B --> C{Quality Above Threshold?}
    C -->|Yes| D[Return Result]
    C -->|No| E[Fallback Backend]
    E --> F{Quality Above Threshold?}
    F -->|Yes| D
    F -->|No| G[Return Best Result]

Document-Level Optimization¶

Some OCR backends (including EasyOCR) now support document-level processing. When a file path is provided, the extractor can bypass the expensive page-by-page rendering stage and delegate the entire document to the OCR engine. This significantly reduces memory overhead and improves throughput for large PDFs and multi-page images.

For backend configuration, language selection, and PSM/OEM modes, see the OCR Guide.

Candle GLM-OCR¶

Pure-Rust VLM OCR via the candle-glm-ocr feature. Wraps the zai-org/GLM-OCR 0.9B-param vision-language model running natively through the candle transformer framework. No ONNX Runtime dependency.

Feature flag: candle-glm-ocr

Implies: candle-ocr, kreuzberg-candle-ocr/glm-ocr, layout-detection

Deployment:

• CPU & Metal (macOS) — Full support
• CUDA (Linux/Windows with NVIDIA GPU) — Full support
• WASM — Excluded (candle not available on WASM)
• Android x86_64 emulator — Excluded (no prebuilt candle targets)

Model & performance:

• Model size: ~3 GB on first download; cached at ~/.cache/huggingface/
• Default layout mode: paired — PP-DocLayout-V3 detects regions, per-region task-specific OCR (ocr/table/formula/chart/caption), outputs merged into reading-order markdown
• Alternative mode: whole_page — Single OCR pass over entire page with optional task override
• Metal dtype: F32 (BF16 matmul unavailable in candle 0.10)

Configure via --ocr-backend candle-glm-ocr or ocr.backend = "candle-glm-ocr" in config. Set layout mode and device via backend_options: {"layout_mode":"paired"}, {"layout_mode":"whole_page"}, {"device":"metal"}, {"device":"cuda"}.

Candle Hunyuan-OCR¶

Pure-Rust VLM OCR via the candle-hunyuan-ocr feature. Tencent Hunyuan-OCR vision-language model with document layout understanding and multilingual support. No ONNX Runtime dependency.

Feature flag: candle-hunyuan-ocr

Implies: candle-ocr, kreuzberg-candle-ocr/hunyuan-ocr

Deployment:

• CPU & Metal (macOS) — Full support
• CUDA (Linux/Windows with NVIDIA GPU) — Full support
• WASM — Excluded (candle not available on WASM)
• Android x86_64 emulator — Excluded (no prebuilt candle targets)

Model & performance:

• Model size: ~2 GB on first download; cached at ~/.cache/huggingface/
• Detects layout and text regions, outputs merged into reading-order markdown
• CPU dtype: F32; CUDA dtype: F16

Configure via --ocr-backend candle-hunyuan-ocr or ocr.backend = "candle-hunyuan-ocr" in config. Set device via backend_options: {"device":"metal"}, {"device":"cuda"}.

Attribution: Model vendored from jhqxxx/aha (Apache-2.0). See ATTRIBUTIONS.md.

Candle DeepSeek-OCR¶

Pure-Rust VLM OCR via the candle-deepseek-ocr feature. DeepSeek-OCR vision-language model combining SAM, CLIP, Qwen2, and DeepSeek-V2 MoE architecture. Advanced document understanding with multilingual support. No ONNX Runtime dependency.

Feature flag: candle-deepseek-ocr

Implies: candle-ocr, kreuzberg-candle-ocr/deepseek-ocr

Deployment:

• CPU & Metal (macOS) — Full support
• CUDA (Linux/Windows with NVIDIA GPU) — Full support
• WASM — Excluded (candle not available on WASM)
• Android x86_64 emulator — Excluded (no prebuilt candle targets)

Model & performance:

• Model size: ~3 GB+ on first download; cached at ~/.cache/huggingface/
• Fine-grained layout detection, table region recognition, text extraction with confidence scores
• CPU dtype: F32; CUDA dtype: F16

Configure via --ocr-backend candle-deepseek-ocr or ocr.backend = "candle-deepseek-ocr" in config. Set device via backend_options: {"device":"metal"}, {"device":"cuda"}.

Attribution: Model vendored from jhqxxx/aha (Apache-2.0). See ATTRIBUTIONS.md.

Candle PaddleOCR-VL 1.5¶

Pure-Rust VLM OCR via the candle-paddleocr-vl-15 feature. PaddleOCR-VL 1.5 vision-language model with SigLIP+Ernie integration. Fast multilingual document OCR with strong CJK support. No ONNX Runtime dependency.

Feature flag: candle-paddleocr-vl-15

Implies: candle-ocr, kreuzberg-candle-ocr/paddleocr-vl-15

Deployment:

• CPU & Metal (macOS) — Full support
• CUDA (Linux/Windows with NVIDIA GPU) — Full support
• WASM — Excluded (candle not available on WASM)
• Android x86_64 emulator — Excluded (no prebuilt candle targets)

Model & performance:

• Model size: ~1 GB on first download; cached at ~/.cache/huggingface/
• Lightweight architecture optimized for speed and accuracy on scanned documents
• CPU dtype: F32; CUDA dtype: F16

Configure via --ocr-backend candle-paddleocr-vl-15 or ocr.backend = "candle-paddleocr-vl-15" in config. Set device via backend_options: {"device":"metal"}, {"device":"cuda"}.

Attribution: Model vendored from jhqxxx/aha (Apache-2.0). See ATTRIBUTIONS.md.

Candle VLM-OCR Umbrella¶

The candle-vlm-ocr feature aggregates all Candle VLM-OCR backends: candle-hunyuan-ocr, candle-deepseek-ocr, candle-paddleocr-vl-15, candle-glm-ocr, and candle-trocr. Use this aggregate to enable all pure-Rust vision-language OCR options in a single feature flag.

Processing Features¶

Optional post-extraction steps, each configured independently through ExtractionConfig.

For RAG Pipelines¶

Content Chunking -- Split extracted text into sized chunks for LLM consumption. Strategies include recursive (paragraph/sentence/word splitting), semantic, and Markdown-aware chunking that preserves heading hierarchy. Chunks can be sized by character count or by token count using any HuggingFace tokenizer.

Embeddings -- Generate vector embeddings locally using FastEmbed. Choose from preset models ("fast", "balanced", "quality") or any FastEmbed-compatible model. Embeddings are generated in-process with no external API calls.

Page Tracking -- Extract per-page content with byte-accurate offsets for O(1) page lookups. Chunks are automatically mapped to their source pages, enabling precise citations in retrieval systems. Supported for PDF (byte-accurate), PPTX (slide boundaries), and DOCX (best-effort page breaks). See Extraction Basics for usage.

PDF Hierarchy Detection -- Detect document structure from PDFs using K-means clustering on block characteristics (font size, weight, indentation, position). Blocks are assigned to semantic levels (title, section, subsection, paragraph) without relying on explicit heading tags. See the Output Formats Guide.

PDF Page Rendering v4.6 -- Render individual PDF pages as PNG images for thumbnails, vision model input, or custom processing pipelines. Memory-efficient iterator renders one page at a time. Configurable DPI (default 150). Available across all language bindings. See Extraction Guide.

LLM-Powered Intelligence¶

Kreuzberg integrates with 143 LLM providers including local inference (Ollama, LM Studio, vLLM, llama.cpp) via liter-llm to unlock three new capabilities that complement the local extraction pipeline.

{
  "type": "object",
  "properties": {
    "invoice_number": { "type": "string" },
    "total": { "type": "number" },
    "line_items": {
      "type": "array",
      "items": {
        "type": "object",
        "properties": {
          "description": { "type": "string" },
          "amount": { "type": "number" }
        }
      }
    }
  }
}

LlmConfig and StructuredExtractionConfig types are exposed in Python, Node.js, and PHP bindings. Five new environment variables (KREUZBERG_LLM_MODEL, KREUZBERG_LLM_API_KEY, KREUZBERG_LLM_BASE_URL, KREUZBERG_VLM_OCR_MODEL, KREUZBERG_VLM_EMBEDDING_MODEL) provide zero-code configuration.

Document Enrichment¶

Named-Entity Recognition -- Detect people, organisations, locations, dates, money, percentages, emails, phones, URLs, and caller-supplied zero-shot labels via gline-rs (ONNX) or any liter-llm provider. Results populate ExtractionResult.entities. See the NER Guide.

Redaction & Anonymisation -- Late-stage post-processor that rewrites content, formatted_content, chunks, entities, summary, translation, and page classifications. Pattern engine covers emails, phones, SSNs, credit cards, IBANs, IP addresses, SWIFT/BIC, postal codes, dates of birth; pair with NER for PERSON / ORGANIZATION / LOCATION. Strategies: mask, hash, token-replace, drop. Caller can supply literal terms and regex patterns. See the Redaction Guide.

Document Summarisation -- Pure-Rust TextRank (extractive, local, deterministic) or any liter-llm provider (abstractive). Result on ExtractionResult.summary. See the Summarisation Guide.

Document Translation -- Translate content, formatted_content, and per-chunk text into a BCP-47 target language with any liter-llm provider. Optional Markdown/HTML preservation. Result on ExtractionResult.translation. See the Translation Guide.

Page Classification -- Per-page LLM classification against caller-supplied labels. Single-label or multi-label. Result on ExtractionResult.page_classifications. See the Page Classification Guide.

VLM Image Captions -- Describe extracted images with any vision-capable liter-llm provider. Result on ExtractedImage.caption. See the Image Captions Guide.

QR-Code Detection -- Pure-Rust rqrr decoder runs over extracted images. Result on ExtractedImage.qr_codes. Ships in wasm-target and android-target. See the QR Codes Guide.

For Search and Indexing¶

Keyword Extraction -- Extract key phrases using YAKE (unsupervised, language-independent) or RAKE (fast statistical method). Configurable n-gram ranges and language-specific stopword filtering. See the Keyword Extraction Guide.

Language Detection -- Identify 60+ languages with confidence scoring using fast-langdetect. Supports multi-language detection for documents with mixed content.

Metadata Extraction -- Pull document properties (title, author, creation date), page/word/character counts, and format-specific metadata (Excel sheet names, PDF annotations).

For Code¶

Code Intelligence -- Extract functions, classes, imports, exports, symbols, docstrings, and diagnostics from 306 programming languages via tree-sitter. Results are available in ExtractionResult.code_intelligence as a ProcessResult. Code files produce semantic chunks (function/class-aware) that bypass the text-splitter entirely. Configure content mode with CodeContentMode: chunks (default, semantic TSLP chunks), raw (source as-is), or structure (headings + docstrings only).

For Data Quality¶

Quality Processing -- Unicode normalization (NFC/NFD/NFKC/NFKD), whitespace and line break standardization, encoding detection, and mojibake correction.

Token Reduction -- Reduce token count while preserving meaning through TF-IDF-based extractive summarization. Three modes: light (~15% reduction), moderate (~30%), and aggressive (~50%).

Table Extraction -- Structured table data from PDFs, spreadsheets, and Word documents with cell-level row/column indexing, merged cell support, and Markdown or JSON output.

Layout Detection¶

Detect and classify document regions using ONNX-based deep learning. Layout detection identifies 17 element types (text, tables, figures, headers, code, forms, captions, and more), enabling accurate region-aware extraction and structured table recovery.

RT-DETR v2 -- The layout detection model that identifies document structure with high precision. Automatically selects and configures separate table structure models (TATR, SLANeXT variants, or SLANet-plus) for cell-level analysis within detected table regions.

Table Structure Recognition -- When layout detection identifies a table, a configurable table structure model analyzes rows, columns, headers, and spanning cells for HTML recovery with colspan/rowspan support. Choose from:

• TATR (30 MB) — General-purpose, fast, default
• SLANeXT Wired/Wireless/Auto (365–737 MB) — Optimized for bordered/borderless tables with auto-detection
• SLANet-plus (7.78 MB) — Lightweight, resource-constrained environments

GPU acceleration via ONNX Runtime (CUDA, CoreML, TensorRT) significantly reduces inference time. Models are automatically downloaded and cached on first use.

Availability: Native builds that include ONNX Runtime. It is excluded from wasm-target, android-target, and the curated windows-target aggregate.

For configuration and usage, see the Layout Detection Guide.

Plugin System¶

The extraction pipeline and query-time APIs are extensible through six plugin categories:

flowchart LR
    A[File Input] --> B[Document Extractor Plugin]
    B --> C[OCR Backend Plugin]
    C --> D[Validator Plugin]
    D --> E[Post-Processor Plugin]
    E --> F[Renderer Plugin]
    F --> G[Output]
    H[Query + Documents] --> I[Reranker Backend Plugin]
    I --> J[Reranked Documents]

Plugins are registered programmatically through typed registries. Built-in plugins register at initialization when their Cargo feature is active; runtime configuration selects registered backends and processors.

For the architecture overview, see Plugin System. For implementation guidance, see Creating Plugins.

Deployment Modes¶

Language Bindings¶

Polyglot bindings share the Rust core and expose the same generated types where the target platform supports the underlying feature.

Binding Tiers¶

Full feature parity with async API -- Rust, Python (PyO3), TypeScript/Node.js (NAPI-RS)

Full features, synchronous API -- Go, Ruby, C#, Java, PHP, Elixir

Native FFI surfaces -- C, R, Dart, Swift, Zig, Kotlin Android

TypeScript: Two flavors

• Native (@kreuzberg/node) — Full speed, complete feature parity (servers, plugins, config file discovery)
• WASM (@kreuzberg/wasm) — Browser/edge runtime, 60–80% of native speed, no native dependencies required. Excluded features: ORT-dependent inference (paddle-ocr, layout detection, embeddings, reranker, auto-rotate, transcription), liter-llm/VLM features, server modes (api/mcp), CLI binary, and browser filesystem paths. Pure-Rust extraction formats, Tesseract WASM OCR, chunking, keywords, language detection, stopwords, tree-sitter, redaction, summarization, SVG, and QR-code detection are supported.

Choose Native for server-side Node.js; choose WASM for browser or edge deployments.

Rust Feature Flags¶

Rust builds are modular through Cargo features. The default feature set is tokio-runtime plus simd-utf8; enable format and analysis features explicitly for the surface you need.

Package Installation¶

pip install kreuzberg                  # Core + Tesseract + PaddleOCR
pip install kreuzberg[easyocr]         # + EasyOCR
pip install kreuzberg[all]             # Everything

npm install @kreuzberg/node            # Native (Node.js/Bun)
npm install @kreuzberg/wasm            # WASM (browser/edge)

[dependencies]
kreuzberg = { version = "5", features = ["pdf", "ocr", "chunking"] }

gem install kreuzberg                  # Ruby
go get github.com/kreuzberg-dev/kreuzberg/packages/go/v5  # Go
dotnet add package Kreuzberg           # C#

For API details per language, see the API Reference.

Configuration¶

Four configuration methods, checked in this order:

1. Programmatic -- Construct ExtractionConfig objects in code (all bindings)
2. TOML -- kreuzberg.toml
3. YAML -- kreuzberg.yaml
4. JSON -- kreuzberg.json

Config files are auto-discovered from the current directory, ~/.config/kreuzberg/, and /etc/kreuzberg/. Environment variables (KREUZBERG_CONFIG_PATH, KREUZBERG_CACHE_DIR, KREUZBERG_OCR_BACKEND, KREUZBERG_OCR_LANGUAGE) override file-based settings.

For the full configuration schema and examples, see the Configuration Guide.

AI Coding Assistants¶

Kreuzberg ships with an Agent Skill that teaches AI coding assistants the complete API across Python, TypeScript, Rust, and CLI. Install it with:

npx skills add kreuzberg-dev/kreuzberg

Compatible with Claude Code, Codex, Gemini CLI, Cursor, VS Code, Amp, Goose, Roo Code, and any tool supporting the Agent Skills standard. See the AI Coding Assistants Guide.

Next Steps¶

• Installation -- Install Kreuzberg for your language
• Quick Start -- Extract your first document in 5 minutes
• Architecture -- Understand the Rust core and binding layers
• Development Workflow -- Performance benchmarks and optimization guidance
